Roller Kinematics
Linear tension during mechanical spinning is governed by the relative velocity of successive roller pairs in a drawing frame. The draft ratio represents this velocity relationship, determining the degree of reduction in yarn density as the fibre strand passes through the machine. This ratio is expressed as the output speed divided by the input speed.
It directly dictates the final yarn count, affecting the weight and hand of the knitted or woven fabric.

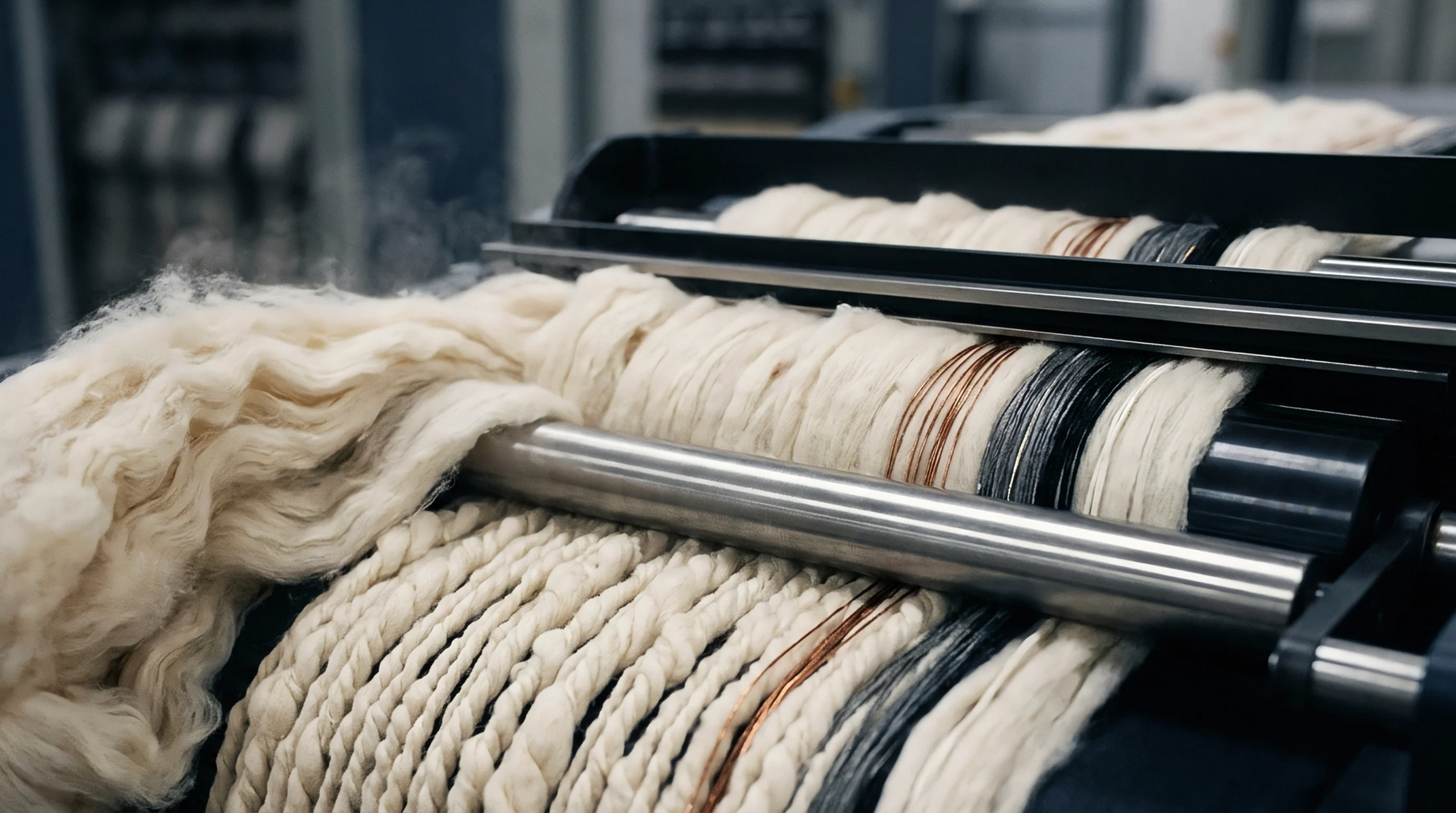

Fiber Parallelization
Drawing operations align the crimped, disordered mass of raw cotton or synthetic fibres into a parallel arrangement. Adjusting the draft ratio changes the spacing between fibres, which increases yarn uniformity and eliminates thick places. This alignment is necessary to prevent yarn breakage during high-speed weaving.
Too high a ratio can lead to drafting waves and irregular yarn diameters.
Linear Density
Mass measurements confirm the efficiency of the drawing process by comparing the input sliver weight to the output yarn weight. A higher draft ratio results in a finer thread. Spinners manipulate this setting to meet tight tolerances.
This helps maintain consistent fabric weight.
Processing Constraint
Mechanical limits of the spinning frame restrict the operating window of the drafting system. When the draft ratio is set too high for a given fibre length, the drafting rollers lose control of the shorter fibres. This loss of control causes uneven patches and weakens the yarn strength.
Correct roller pressure and spacing must accompany ratio adjustments to ensure consistent yarn quality.
